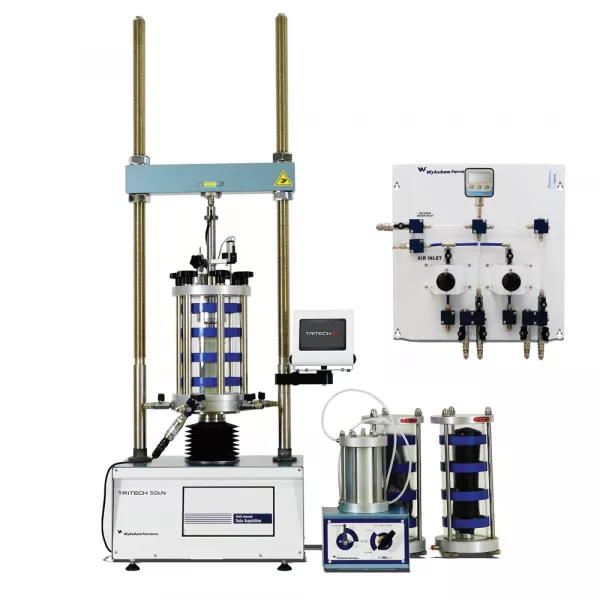

Standard triaxial System with built-in data acquisition is the ideal compact solution for performing standard triaxial tests such as effective and total stress. .
A typical standard triaxial system with built-in acquisition measurement includes:
Load frame with four built-in channels:
- TRIAX specifically designed for triaxial applications and is ideal for commercial laboratories that need a versatile machine capable of performing a wide range of tests. (Max sample sizes: 70 mm)
- TRITECH 50 kN or 100 kN: TRITECH original high-performance load frames for triaxial tests, ideal solution for advanced and research laboratories to perform high quality tests at .
Triaxial cell with accessories:
- Standard triaxial cell with dedicated accessories for performing and preparing sample form 35 mm to 100 mm diameter.
- Banded triaxial cell with dedicated accessories for performing and preparing sample from 38 to 150 mm diameter.
Digital measuring system: Data acquisition is included in the load frame; four channels are available for load, displacement, pore pressure and volume change. If Hydromatic standalone pressure unit is selected, a separate volume change device is not required.
Pressure system:
- Hydromatic standalone pressure/volume controller, water pressure source and volume change controller for cell and back pressure.
- Air/water interface with air compressor and air filter
Template for data processing and reporting: geotechnical Geo-Analysis-Templates suitable for real time data processing and printout of test certificates according to the most important international Standards.
More than 300 system configurations are available depending on type of test, sample size, pressure system. Please contact us for a complete offer.
