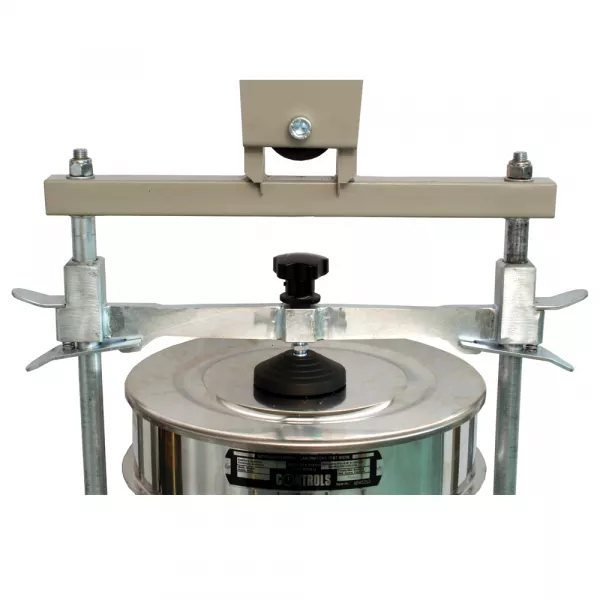

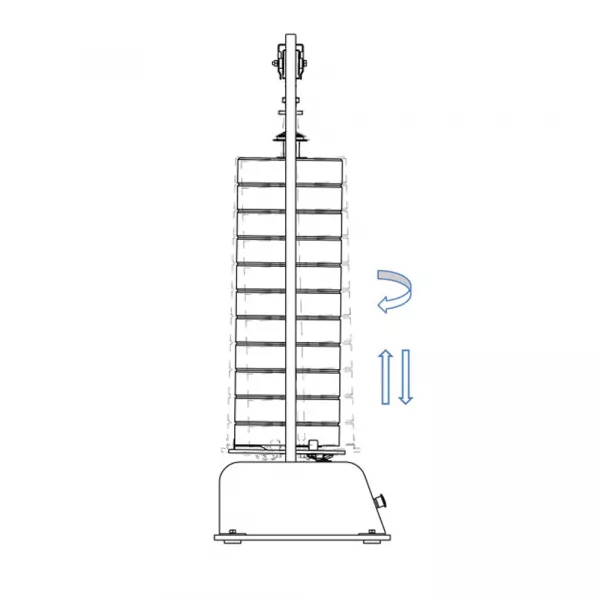

This new electro-mechanical shaker features efficient sieving action, heavy duty and simple design. The sieve column is held at the top by a rubber pad with spherical seat and rotates eccentrically at the bottom ensuring uniform shaking of the sample across the whole surface of the sieves. Upon each revolution, a simple mechanical mechanism imparts hits at the base of the sieve column so as to move the sample on the sieve surface for a very efficient sieving action. The front panel includes the mains switch, the emergency stop button and timer.

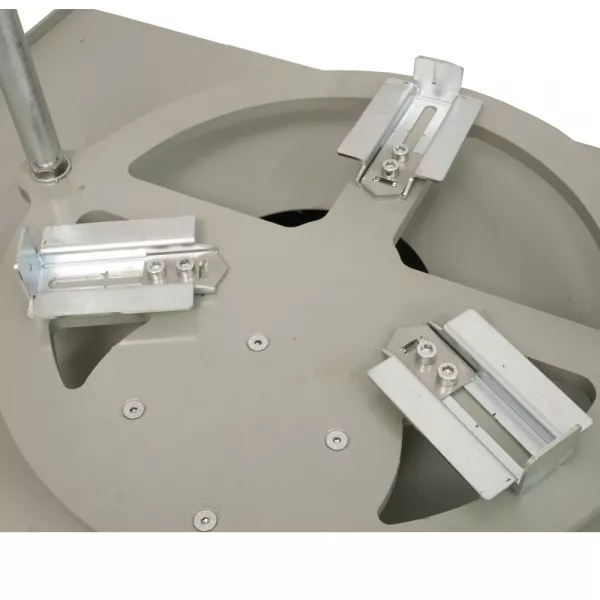

The shaker has to be fixed to the base through the four holes at the base. A noise reduction cabinet is also available for housing the shaker. See accessories.
Two versions available:
- 15-D0410, 15-D0410/Y and 15-D0410/Z for sieves up to 315 mm dia. and
- 15-D410/A, 15-D0410/AY and 15-D0410/AZ for sieves up to 450 mm dia
15-D0410
Electromechanical sieve shaker for sieves up to 315 mm dia. 220 V, 50 Hz, 1 ph.
15-D0410/Y
Electromechanical sieve shaker for sieves up to 315 mm dia. 220 V, 60 Hz, 1 ph.
15-D0410/Z
Electromechanical sieve shaker for sieves up to 315 mm dia. 110 V, 60 Hz, 1 ph.
15-D0410/A
Electromechanical sieve shaker for sieves up to 450 mm dia. 220 V, 50 Hz, 1 ph
15-D0410/AY
Electromechanical sieve shaker for sieves up to 450 mm dia. 220 V, 60 Hz, 1 ph.
15-D0410/AZ
Electromechanical sieve shaker for sieves up to 450 mm dia. 110 V, 60 Hz, 1 ph.

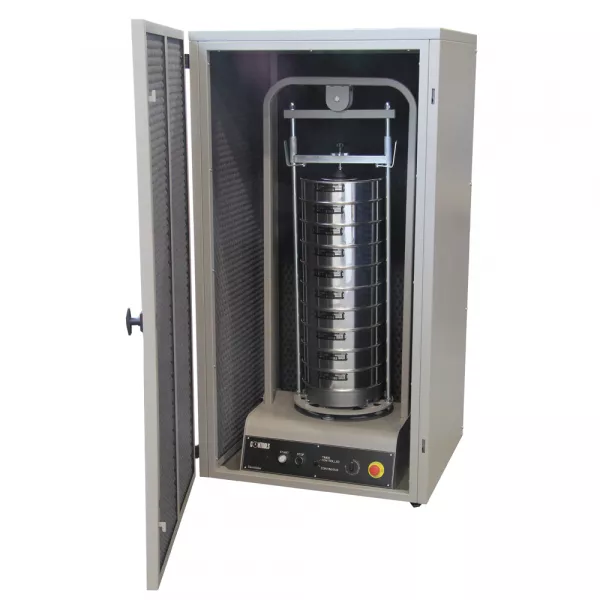

33-T3000/CB
Noise reduction cabinet for CBR-Proctor compactor model 33-T351x, 33-T361x and sieve shaker model 15-D0410.
15-D0400/B1
Wet washing sieve attachment for 200 mm dia. sieves
15-D0400/B2
Wet washing sieve attachment for 8" dia. sieves
15-D0400/B3
Wet washing sieve attachment for 300 mm dia. sieves
15-D0400/B4
Wet sieving attachment for 305 mm (12") dia. sieves. Weight 5 kg approx.
