The rock strength index apparatus consists of a high stability load frame 100 kN cap. with hydraulic loading ram actuated by a hand pump. Loading frame and manual pump are independent resulting in a superior functionality and usability of the equipment.
The unit is conforming to ASTM D5731 and ISRM suggested method and the wide testing area allows to test both rock cylinders and irregular shaped samples.
It features an ergonomic digital readout unit with graphic display battery operated and membrane keyboard.

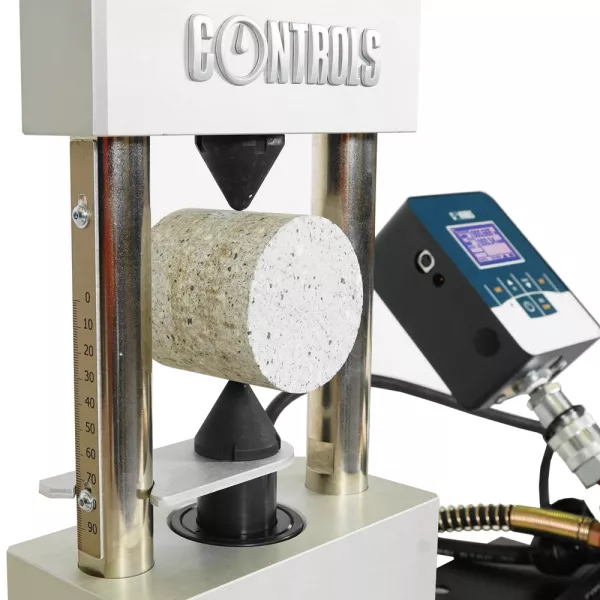

The compression load is measured by a in-built pressure transducer, assuring the best accuracy and resistance to the failure shocks. A ruler is assembled on the frame allowing the direct measurement of the distance D between the conical platens before and after the test.

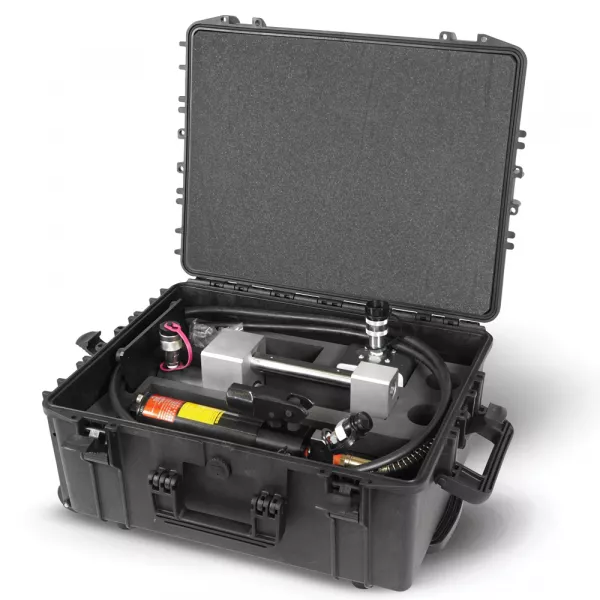

The complete set is housed in an ergonomic carrying case with wheels.
32-D0550
Digital rock strength index apparatus, 100 kN cap.conforming to ASTM D5731 and ISRM suggested method.
32-D0550/A7
Set of hardened conical platens
32-D0550/A9
Set of spare gaskets for the hydraulic cylinder fitted in the point load tester model 45-D0550
32-D0550/D5

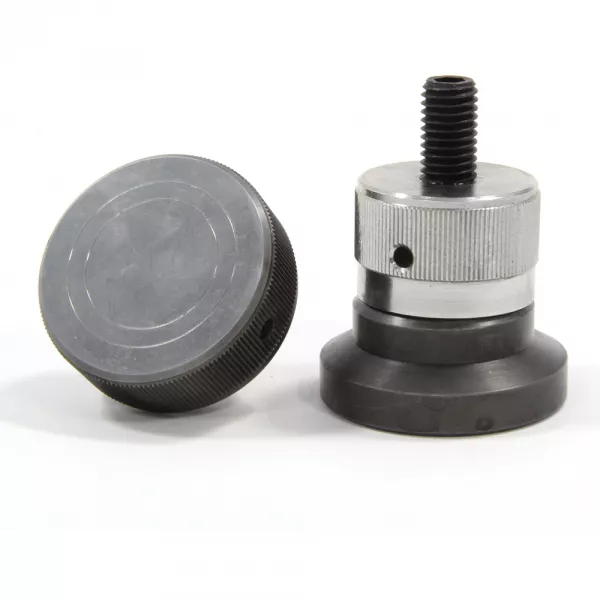

Set of lower and upper platen 52 mm dia with spherical seat for compression test on concrete microcors
32-D0550/D6
Mounting/Dismounting tool for the conical points fitted on point load machine 45-D0550
32-D1717
Clear safety goggles
