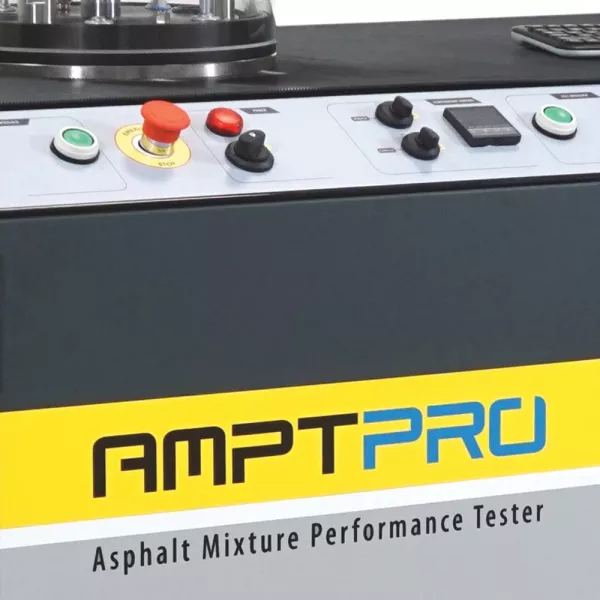

IPC Global, the researcher’s choice for advanced asphalt testing equipment has again set the benchmark for innovation and performance with the new AMPT PRO. Designed with the latest technologies and product developments, the AMPT PRO surpasses any other product on the market.
Fully complies with AASTHO TP9 and can perform the three asphalt tests of NCHRP Projects 9 -19 and 9-29 - Dynamic modulus, Flow number and Flow time with ease. In addition it can perform Uniaxial Fatigue / SVECD, Overlay test, Semi-Circular Bend, Indirect Tensile Dynamic Modulus, iRLPD and Small Diameter Dynamic Modulus and SVECD tests with the additional of optional hardware accessories.
The Asphalt Mixture Performance Tester can be used as part of your Superpave performance based testing program.
This original Asphalt Mixture Performance Tester (AMPT) is the culmination of two National Cooperative Highway Research Program (NCHRP) projects. IPC Global has been involved in IPC Global equipment, and has been successfully evaluated by NCHRP.
- Load Capacity: Static: 19kN, Dynamic 17kN
- Frequency Range: 0.01 to 70Hz sinusoidal loading
- Actuator Stroke: 30mm (+/- 15mm stroke)
- Actuator Type: Labyrinth Bearing
- Specimen Size (dia xh): 100 x 150 mm nominally, 50 x 135 mm, 38 or 50 x 110 mm
- Temperature Range: -10 ° C to + 70 ° C *
- Cooling Rate: Typically cools to + 4 ° C in under 30 minutes (at an ambient temperature of + 23 ° C)
- Temperature Accuracy: +/- 0.2 ° C (at temperature probe placed close to the specimen)
- Cell Dimensions (dia xh): 270 x 390mm
- Confining Pressure: 0 to 225 kPa
- Noise Level: Less than 70db at 2m
- Computer Control: Integrated all-in-one PC touchscreen (optional)
- Air Compressor and Dryer: Low noise, integrated, automated operate-on-demand (optional)
- Easily interchangeable load cells test
- Supplied complete with high quality pre-filtered oil for longer life
- Dimensions (hxwxd): 1,359 x 1,350 x 739mm
- Weight: 275kg (including oil)
Transducers
- Load Cell: Low profile pancake type
- Built-in LVDT Actuator: 30mm Stroke
- Pressure: 0 to 225 kPa
- On-Specimen Displacement: 3 clips on +/- 0.5mm LVDTs Compatible with up to 4 (Various optional loose-core, strain gauge transducers available)
- Temperature Probe Range: from -25 up to +80° C
- Plug-and-Play: Up to 4 interchangeable on-specimen displacement transducers, plus easily interchangeable load cells
Services
- Power (without air compressor): 220V–240V, 50Hz, single phase, 17A 208V, 60Hz, single phase, 20A
- Power (with air compressor): 220V–240V, 50Hz, single phase, 22A 208V, 60Hz, single phase, 25A
- Air: Clean dry air at 450-800kPa; 2 L/sec (Optional integrated air compressor available)
- Hydraulic Oil: Pre-filled with high specification pre-filtered, ISO 46 Premium Mineral Oil
Control & Data Acquisition—IMACS2
- Configuration: Fully integrated
- Real Time Digital Computer Control: 32-bit Processing
- Acquisition Speeds: 200kHz (simultaneous on all channels)
- Data Over-Sampling: At least 4x
- Data Resolution: 24-bit auto-ranging data acquisition
- Communication: Ethernet at 10/100Mb/s, Ethernet at 1Gb/s
- Analogue Inputs: Auto-calibrate on power up

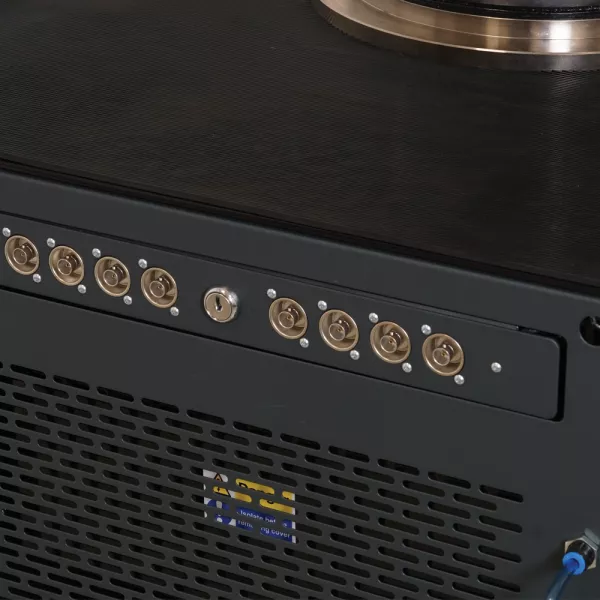

- Analogue Outputs: 8 BNC connectors for raw data logging
- Control: 2 axis control (actuator and confining pressure)
- Acquisition: Up to 8 Channel data acquisition (actuator displacement, axial load, 3 to 4 on-specimen displacement transducers, confining pressure and temperature)
79-PV71A12/I2
IPC Global AMPT Pro - Asphalt Mixture Performance Tester (formerly SPT), complete with inbuilt IMACS2 controller. 208-230V/50-60Hz/1Ph
79-PV70502
AMPT Universal proving ring assembly, complete with 6 hexagonal gauge points
79-PV70507
AMPT Consumables kit. Comprises: 24x AMPT Sample Target (Hexagonal Gauge points) 1x Selleys 5 Min Araldite 24mL 1x 9.75""/3/32"" Rubber O-Ring 1x 100mm Sealing Rings (Pack of two) 2x 100mm Rubber Membranes"
79-PV70617
Uni-Axial Fatigue Gluing Jig - 75, 50 & 38mm Specimen Retro-fit Kit
79-PV70618
Uniaxial Fatigue Tension platen (one piece) for 50mm diameter specimens
79-PV71000
AMPT Pro - All-in-One Touch Screen PC Assembly
79-PV71001
AMPT Pro compressor assembly, Max air flow 137 L/min, 8 Bar cap., 5 litres tank, with air dryer with molecular sever 230V/50Hz/1ph
79-PV71002
AMPT Pro compressor assembly, Max air flow 137 L/min, 8 Bar cap., 5 litres tank, with air dryer with molecular sever 220V/60Hz/1ph
79-PV71010
AMPT Pro On-Specimen LVDT Assy - IPC Guided SpringCore Black. Includes ILC Pod and LVDT Target Clamps x2
79-PV71011
AMPT Pro On-Specimen LVDT Assy - IPC Guided SpringCore Blue. Includes ILC Pod and LVDT Target Clamps x2
79-PV71012
AMPT Pro On-Specimen LVDT Assy - IPC Guided SpringCore Green. Includes ILC Pod and LVDT Target Clamps x2
79-PV71211
AMPT 50mm Specimen Platen Kit (top & bottom platens set)
79-PV71212
AMPT LVDT Gauge Point Fixing Jig 38mm Specimen Upgrade Kit
79-PV71213
AMPT LVDT Gauge Point Fixing Jig 50mm Specimen Upgrade Kit
