Concrete mixers

Pan type models have been selected for laboratory use, to prepare concrete specimens and samples. They assure the best uniformity and efficient mixing. 55-C0199/9A model is supplied complete with additional interchangeable mixing paddle, particularly suitable for low slump concrete, wheels and drawbar.

55-C0199/11 and 55-C0199/20 models can be completed with optional wheels and drawbar. See accessories.

The drum type model 55-C0196/2 is more suitable for field use to prepare low-medium strength specimens.

Inquiry Now

Pan type models have been selected for laboratory use, to prepare concrete specimens and samples. They assure the best uniformity and efficient mixing. 55-C0199/9A model is supplied complete with additional interchangeable mixing paddle, particularly suitable for low slump concrete, wheels and drawbar.

55-C0199/11 and 55-C0199/20 models can be completed with optional wheels and drawbar. See accessories.

The drum type model 55-C0196/2 is more suitable for field use to prepare low-medium strength specimens.

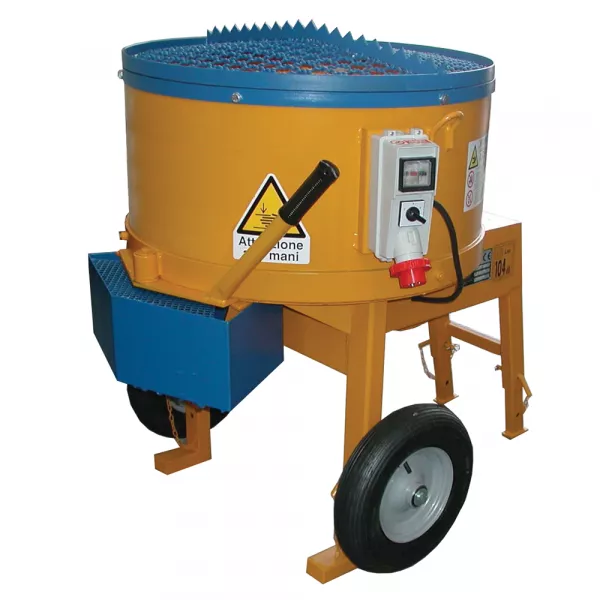

Pan type models 55-C0199/9A, 55-C0199/11, 55-C0199/20

  • Vertical axle forced mixers
  • Gearbox in oil bath
  • Ease in discharge operation, adjustable in height
  • Separate 4” wheel and drawbar available (as optional for 55-C0199/11 and 55-C0199/20 models only)

• EN 12390-2

PAN TYPE MODELS



Model 55-

C0199/9A

C0199/9AY

C0199/9AZ



C0199/11

C0199/11Z



C0199/20

C0199/20Z

Pan cap. (l)

130

200

300

Mixing cap. (l)

90

110-120

160-200

Power (kW)

2

3

5.5

Overall dimensions (lxdxh) mm

850x800x1250

1100x850x1200

1250x1200x1300

Weight approx. (kg)

100

260

340

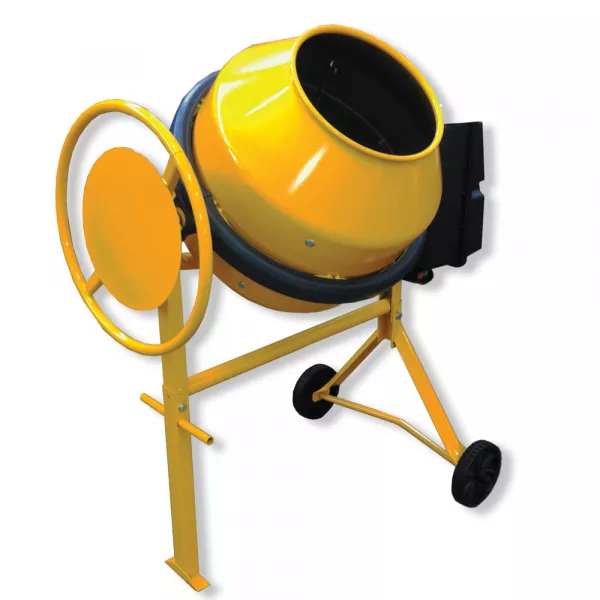

DRUM TYPE MODEL

Model

55-C0196/2

Pan cap. (l)

130

Mixing cap. (l)

96

Power (W)

370

Overall dimensions (lxdxh) cm



120x70x130

Weight approx. (kg)

60

55-C0196/2

Drum type concrete mixer, 130 l pan cap., 96 l mixing cap. 230 V, 50 Hz, 1 Ph

55-C0199/11

Pan type mixer. Pan capacity 200l, mixing capacity110l. Power 3 kW. 380-400V/50Hz/3ph

55-C0199/11Z

Pan type mixer. Pan capacity 200l, mixing capacity110l, reversible rotation. Power 3 kW. 220V/60Hz/3ph

55-C0199/20

Pan type mixer. Pan capacity 300l, mixing capacity200l. Power 5,5 kW. 380-400V/50Hz/3ph

55-C0199/20Z

Pan type mixer. Pan capacity 300l, mixing capacity200l, reversible rotation. Power 5,5 kW. 220V/60Hz/3ph

55-C0199/9A

Pan type mixer. Pan capacity 130l, mixing capacity90l. Power 2 kW. 230V/50Hz/1ph

55-C0199/9AY

Pan type mixer. Pan capacity 130l, mixing capacity90l. Power 2 kW. 220V/60Hz/1ph

55-C0199/9AZ

Pan type mixer. Pan capacity 130l, mixing capacity90l. Power 2 kW. 110V/60Hz/1ph



55-C0199/R1

4" wheels and drawbar for mixer series 55-C0199/11and 55-C0199/20
