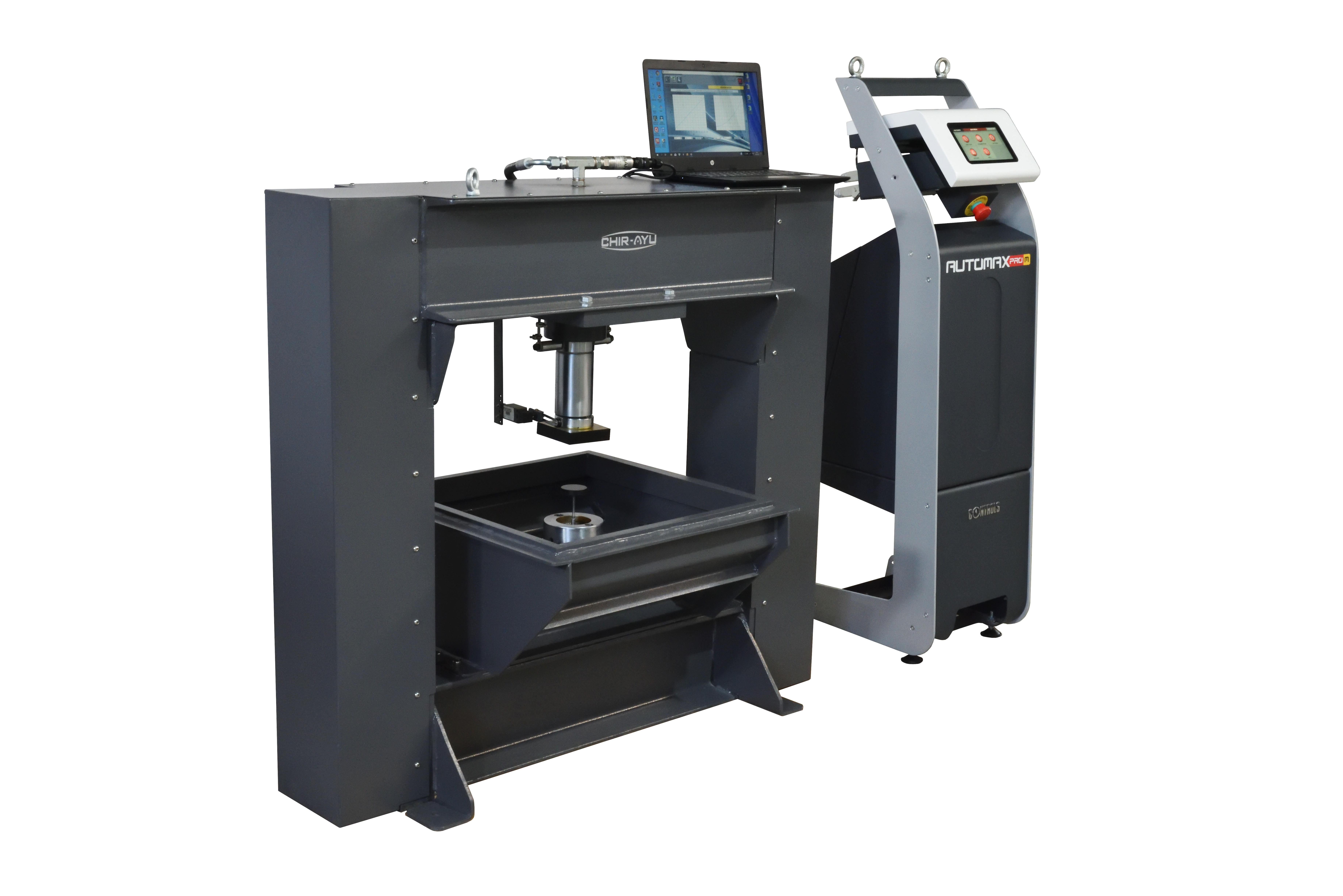

Automax Pro-M , Automatic Determination of Energy Absorption Testing Machine-200 KN

AUTOMAX PRO-M Power Control System fitted with superior hydraulics can also perform Energy absorption tests.

AUTOMAX PRO-M introduces new features and capabilities that will revolutionize the operations of any progressive construction quality testing laboratories.

The machines consist of:

Frame

High stiffness 200 KN flexural testing frame

Automax PRO-M, Automatic power and control system

 See technical specifications.

Safety features Includes:

 Max. Pressure valve to avoid machine overloading; piston travel limit switch; emergency stop button; front door and rear transparent fragment guard.

Inquiry Now

AUTOMAX PRO-M Power Control System fitted with superior hydraulics can also perform Energy absorption tests.

AUTOMAX PRO-M introduces new features and capabilities that will revolutionize the operations of any progressive construction quality testing laboratories.

The machines consist of:

Frame

High stiffness 200 KN flexural testing frame

Automax PRO-M, Automatic power and control system

 See technical specifications.

Safety features Includes:

 Max. Pressure valve to avoid machine overloading; piston travel limit switch; emergency stop button; front door and rear transparent fragment guard.

  • AASHTO T22
  • ASTM C39
  • ASTM C469

Hydraulics

  • Dual stage HPU: centrifugal low pressure for fast approach automatically switches to radial multi-piston high pressure for loading
  • DC motor: 720 W, 50-60 Hz
  • Maximum working pressure: 700 bar
  • Load / unload electro valve for test execution via display / PC and automatic stop at specimen failure
  • Third and fourth frame option, control of up to 4 frames by selection via display / PC
  • ES Energy Saving technology to reduce power consumption and promote silent operation
  • Flow-sharing technology to perform loading and unloading cycles

Hardware

  • 524,000 points high-resolution / stability analogue channels
  • 6 channels to be factory configured:
  • 2 channels for load sensors (pressure transducers and load cells)
  • 2 channels for load sensors (pressure transducers and load cells) or displacement / strain sensors
  • 2 channels for displacement/strain sensors
  • Control frequency: 250 Hz
  • Sampling frequency: 250 Hz
  • 7”, 800 x 480 px, 16m colors, icon-driven touchscreen graphic display (like tablet or phone)
  • Unlimited storage capacity for test data on internal 8 GB SD card
  • USB port for test data storage on external USB memory stick
  • Ethernet port for PC / Internet / network communication
  • Optional integrated graphic printer including Load-Time plot
  • RS 232 port for data downloading in ASCII format

Firmware

  • Execution of compression, flexure, indirect tensile, ACV tests in automatic mode with load rate controlled by a closed-loop PID system
  • Execution of loading ramps allowing the manual increase or decrease the test speed during the test
  • Pause command to maintain steady load can be enabled at a pre-set value before the test or as required while testing
  • Simultaneous display of load, specific load, actual load rate, load / time graph and load / displacement or load / strain graphs.
  • Zoom option on the test graph
  • Saving of the specimen failure type (to EN or ASTM) in test results
  • Download data to internal printer (optional) or to PC via RS 232 port or to USB memory stick
  • Ethernet port for PC / network communication
  • Multi-coefficient linearization of the calibration curve for better accuracy at low loads avoiding the use of a second pressure transducer.
  • Recording facility for up to 10 test profiles for each channel including: type of test (e.g. compression, flexural, indirect tensile), specimen size and shape, load rate, test standard and other general information. Each one of the recorded test profiles can be recalled automatically to save time.
  • Improved PID algorithm and multi PID selection. Up to 3 different PID settings can be tuned for a variety of materials (ACV, flexure, compression with neoprene pads, etc.)
  • Compatible with the newly released Data manager software, tailored for construction material testing laboratories, for real-time data acquisition, display and management
  • Peripheral devices integration with Link-LAB
  • Automatic load measurement verification procedure, by connecting suitable load cells and our digital readout unit to PC
  • Unit selection (KN, ton, lbf )
  • USB port for firmware upgrade and safe backup of the original configuration data (PID, calibration, etc.), in case of loss and / or data corruption. The restore to factory settings function is easy to use and reduces the need of any technical support.



Frame:

Capacity (KN)

200

Horizontal daylight (mm)

700

Ram Travel (mm)

100

Pressure transducer bar

700

Distance piece

115 dia x 75 mm,



Weight (kg)

300 kg approx

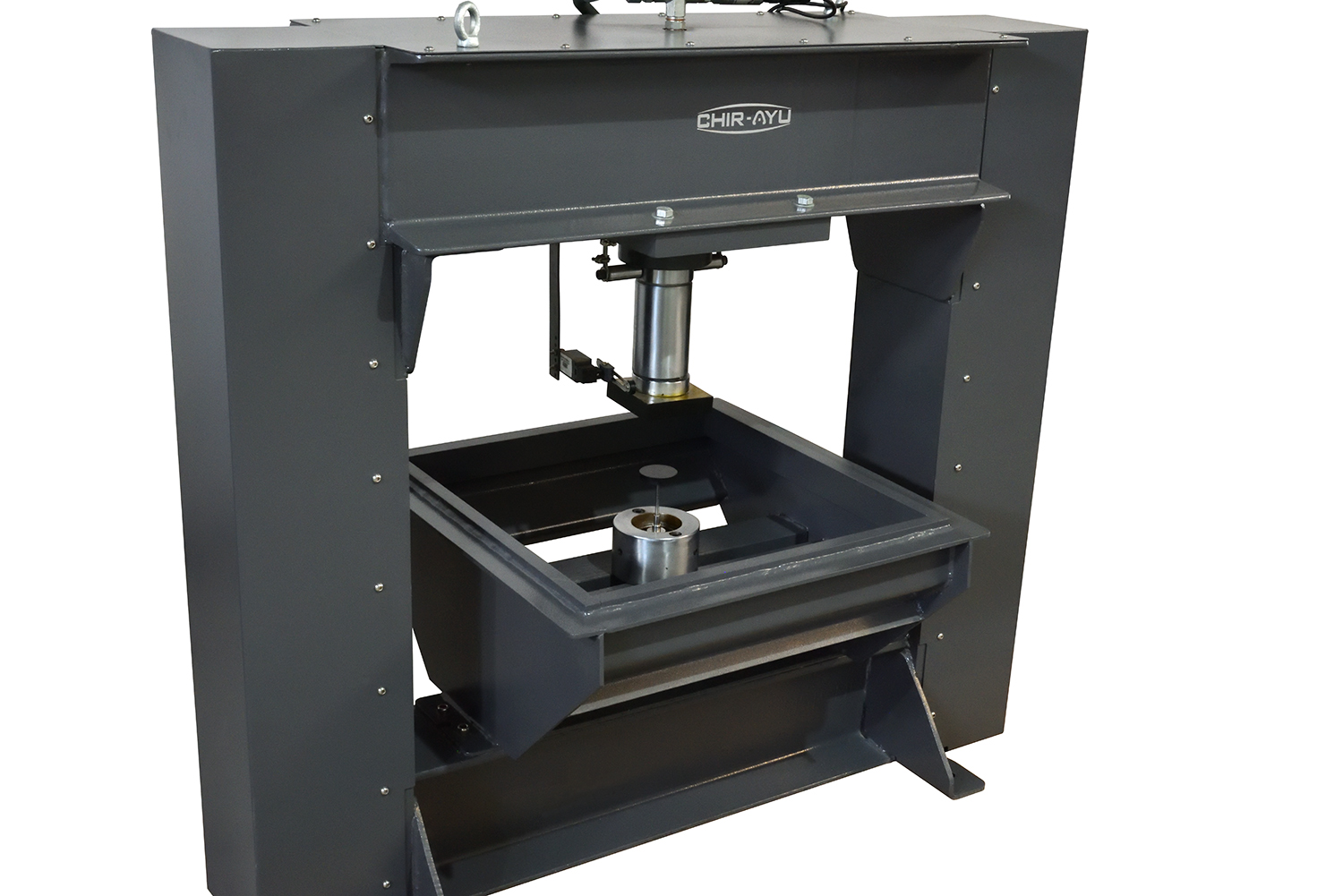

For square panel test of sample size

600 x600 x100 mm

C10F02M/F200/SQ

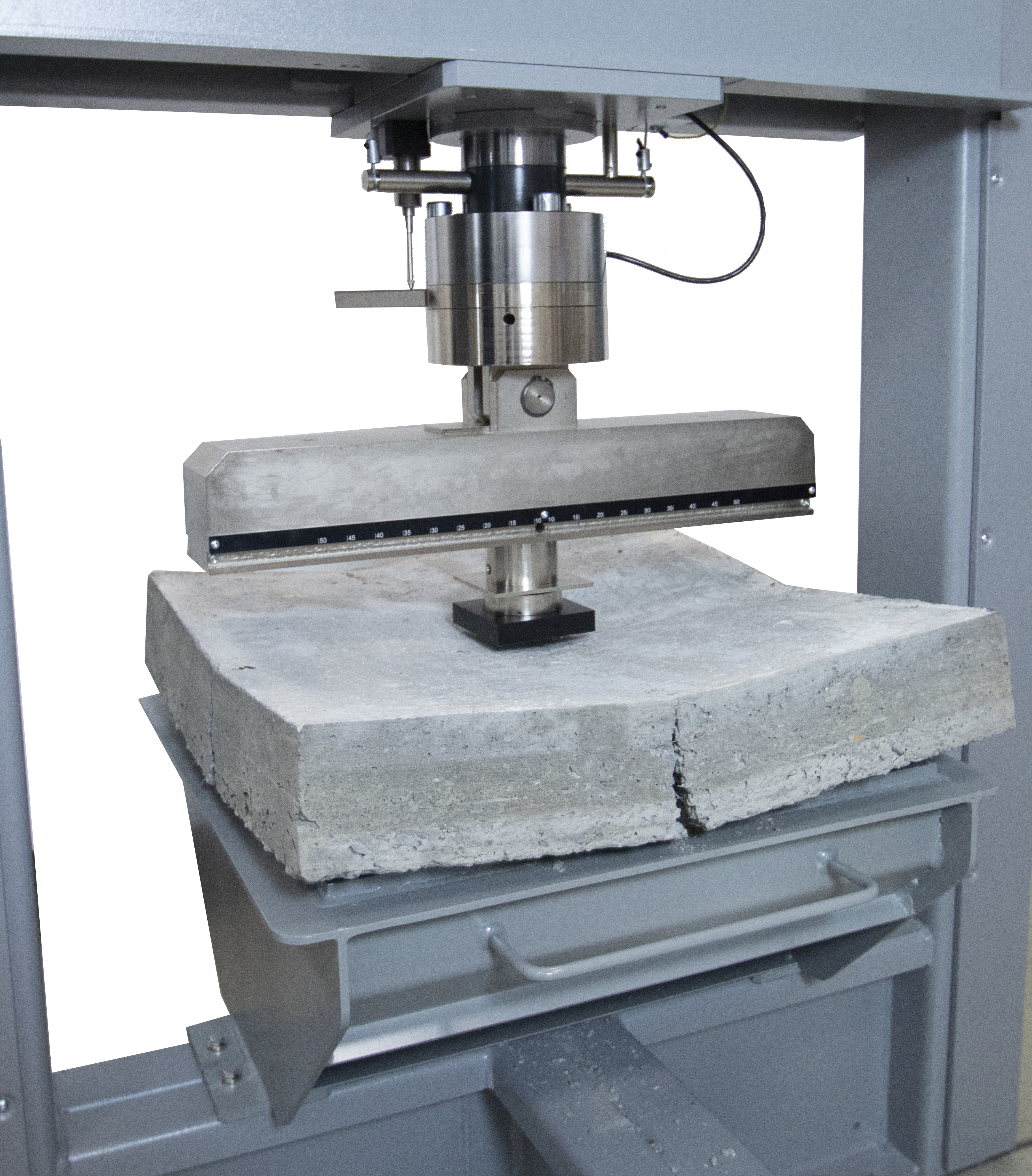

Automax pro-m Automatic Energy absorption testing machine 200KN Capacity confirming to EN 14488-5(Square Panel Test).

Having 7” color touch screen display, PC control SW/DC Software to print report and data saving.

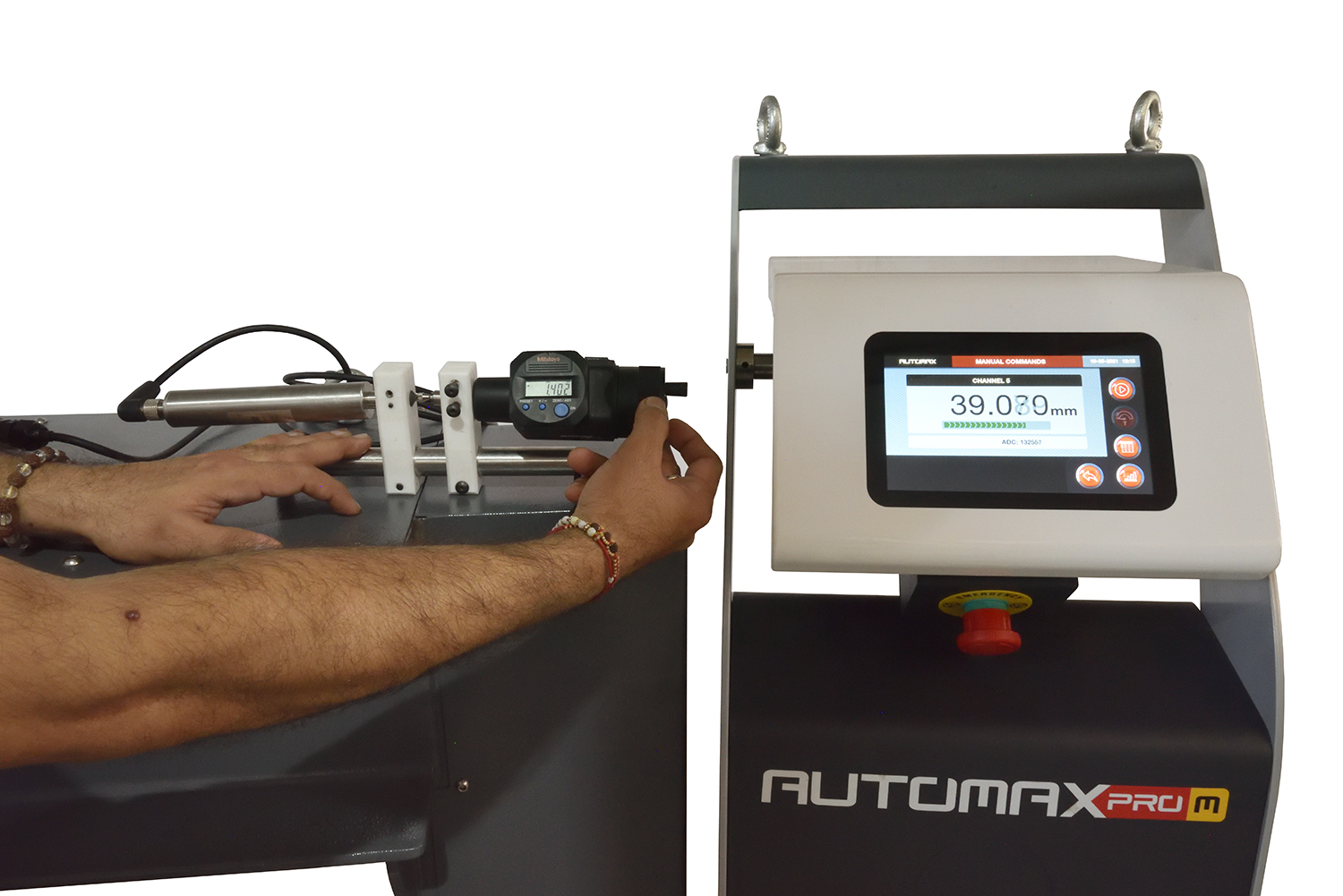

200KN Energy absorption frame with 50mm sensor mounted to measure center point deflection of the slab

Main Features: Fully Automatic PID Closed loop System, 8GB Internal memory, 52500 Point resolution per channel, 2 channels for load sensors, 2 channels for load or displacement/strain Sensors, 2 channels for displacement/strain.

230V/50-60Hz/1Ph.
